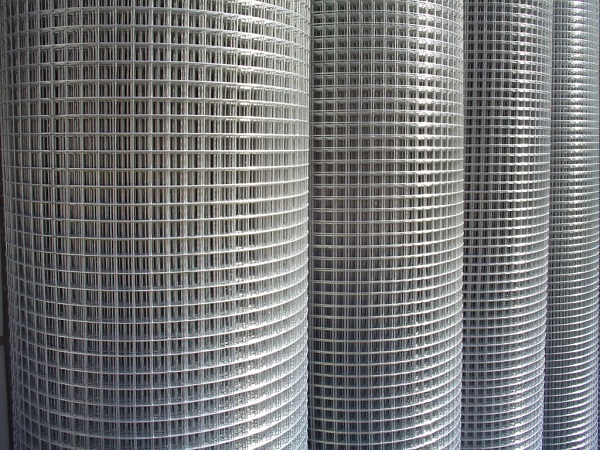

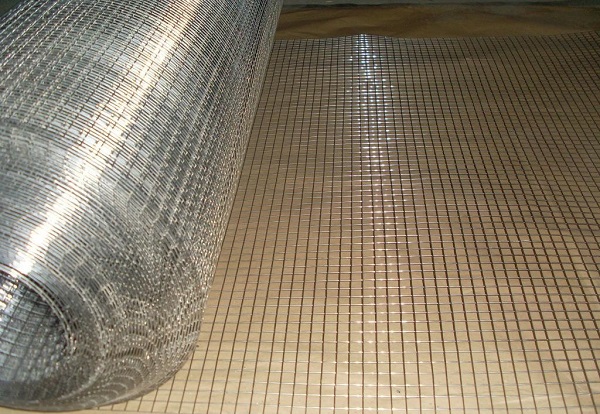

Our Factory is experienced in producing welded wire mesh of full range of roll sizes, opening, wire diameter and various wire materials.
According to materials, we can offer electric galvanized welded wire mesh; hot-dip galvanized welded wire mesh and welded stainless steel wire mesh.
According to the wire diameter and opening, we can offer standard welded wire mesh or heavy type welded wire mesh.
Differernt processing means we offer for your choice include: hot-dip galvanized welding wire mesh; hot-dip galvanized before welding wire mesh; electric-galvanised after welding wire mesh; electric-galvanised before welding wire mesh.
Specification List of Welded Wire Mesh: | ||
Opening | Wire Diameter | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x50.8mm | 14,15,16 |
2" x 2" | 50.8mm x50.8mm | 12,13,14,15,16 |
Technical Note: | ||
Galvanized Fencing Mesh: | ||
Opening | Wire Diameter | |
In inch | In metric unit(mm) | |
2" x 3" | 50mm x75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x100mm | 2.0mm,2.5mm |
Technical Note: | ||

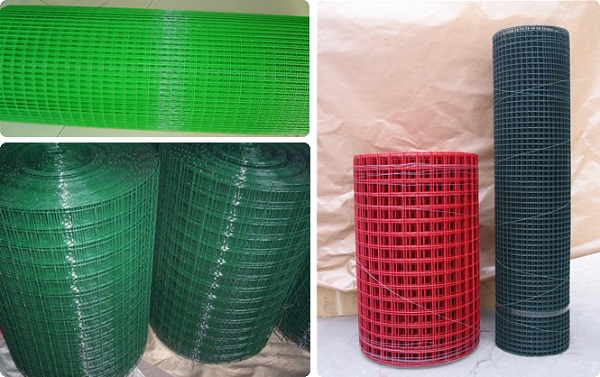

PVC Coated Welded Mesh: | ||
Opening | Wire Diameter | |
In inch | In metric unit(mm) | |
1/2" x 1/2" | 12.7mm x12.7mm | 16,17,18,19,20,21 |
3/4" x 3/4" | 19mm x19mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mm x25.4mm | 15,16,17,18,19,20 |
Technical Note: | ||
